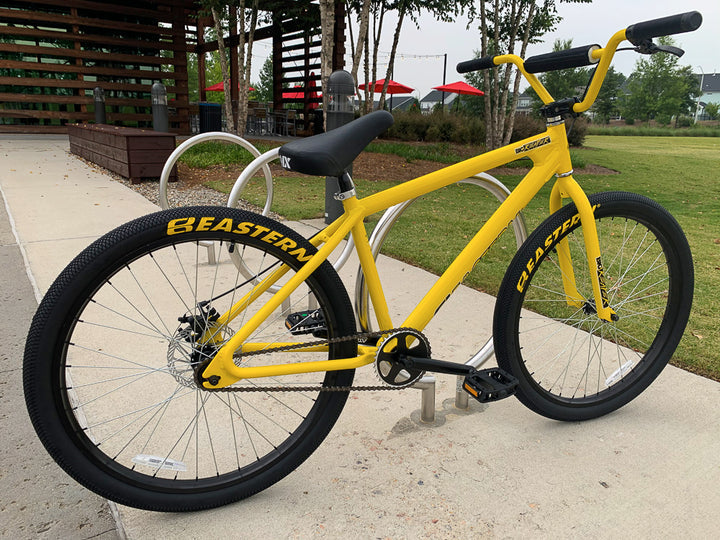

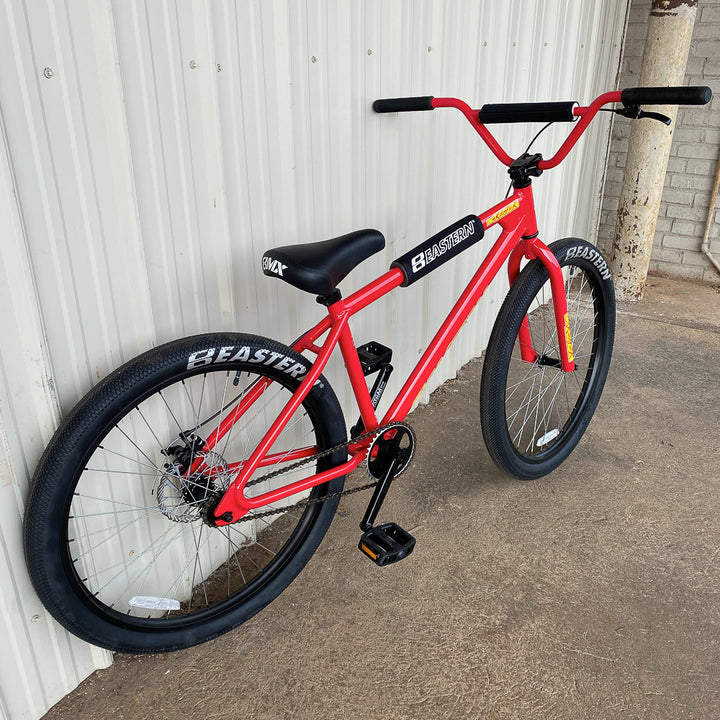

Eastern Big Reaper

FRAME Big Reaper 26", Aluminum Alloy, AM BB, Aheadset, 135mm Rear Hub Spacing, Welded on Rotor Brake Mounts
BB: American/Mid
Headtube: Aheadset
Top Tube: 22.5" (26" models)
Chainstay Length: 16.9" (26" models)
Clamp: Alloy Bolt Clamp

Head Angle 71⁰ | Seat Angle 73⁰ | Top Tube 22.5" | Chain Stay 17"

BARS Hi Ten, 22.2mm barbore, 1.2mm T, 7" x 28"
Upsweep/Backsweep 11⁰/1⁰

FORK Big Reaper 26", Hi-Tensile Steel

HEADSET Aheadset

STEM Forged Alloy Front Load Stem

GRIP Eastern Riblet Grips

CRANK LTD model comes with 3-Piece, Tubular Heat-Treated Chromoly, Pinch Bolt with 8-Splined Spindle, 170mm Arm Length

BOTTOM BRACKET Limited Edition alloy cups with sealed bearings American/Mid

CHAINWHEEL Eastern Maxum, Alloy, 36T

CHAIN KMC Z410 1/2 x 1/8

PEDAL Eastern Atom Plastic Pedal with 9/16" Axle (LTD models)

FRONT BRAKE N/A

FRONT LEVER N/A

REAR BRAKE Disc Brake, Mechanical

REAR LEVER Forged Alloy Lever

BRAKE CABLE [S] Linear

SADDLE Padded Seat with Railed Supports

POST Steel 27.2 x 300mm

FRONT HUB Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle

REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 3/8" Chromoly Axle with 16 Tooth Freewheel Cog

FREEWHEEL 16 Tooth Freewheel

FRONT RIM 26" Alloy, Single Wall, Drilled for 36 Spokes

REAR RIM 26" Alloy, Single Wall, Drilled for 36 Spokes

SPOKES 14 Gauge with Brass Nipples

FRONT TIRE 26 x 2.2 (26")

REAR TIRE 26 x 2.2 (26")

PEG none
